Red Lion RL-SPBS 12-Volt, 3240 GPH Enhanced Battery Back-Up Sump System With 12-Volt Back-Up Sump Pump, Battery Charger and Junction Box, Black, 14942792

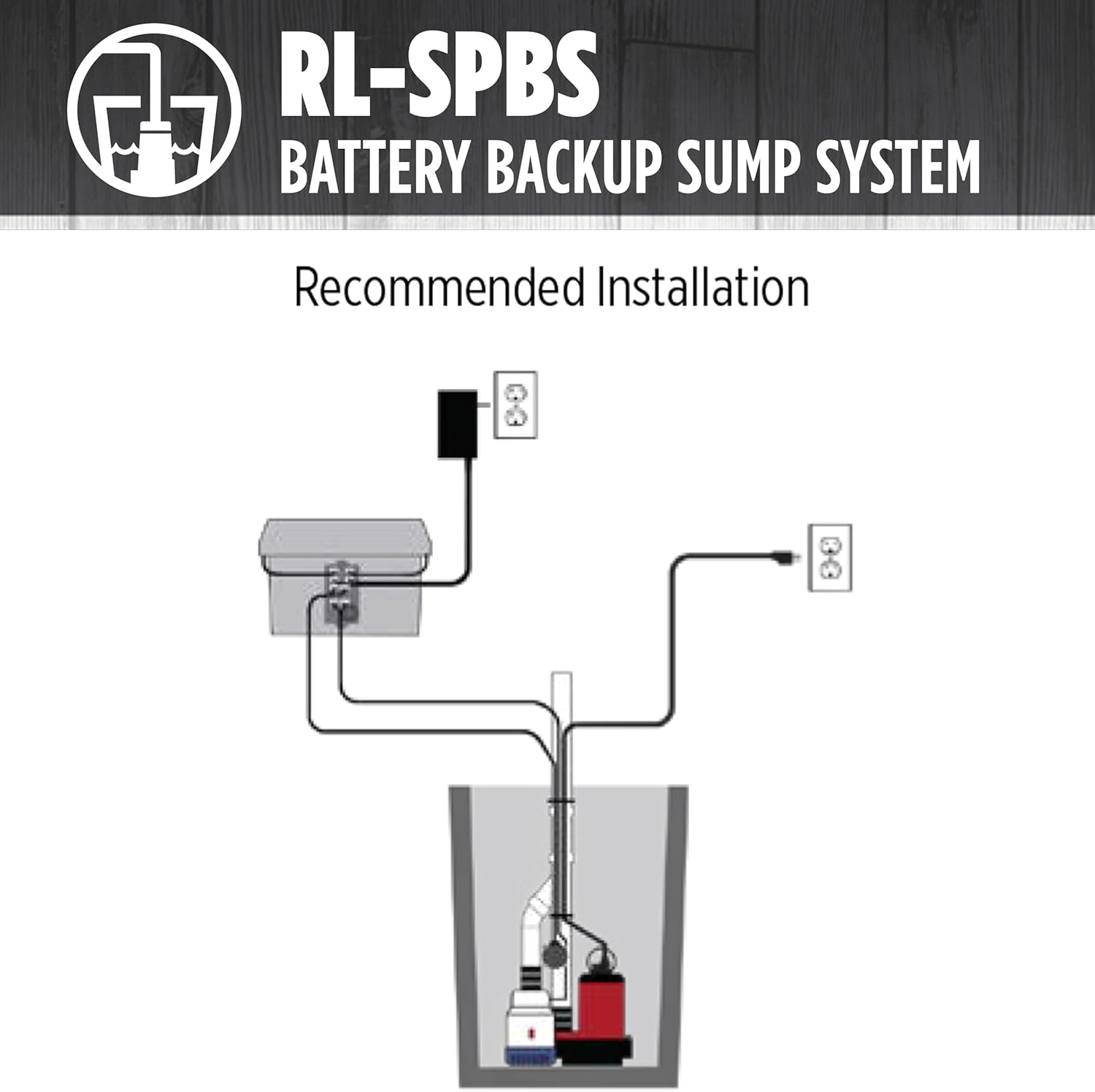

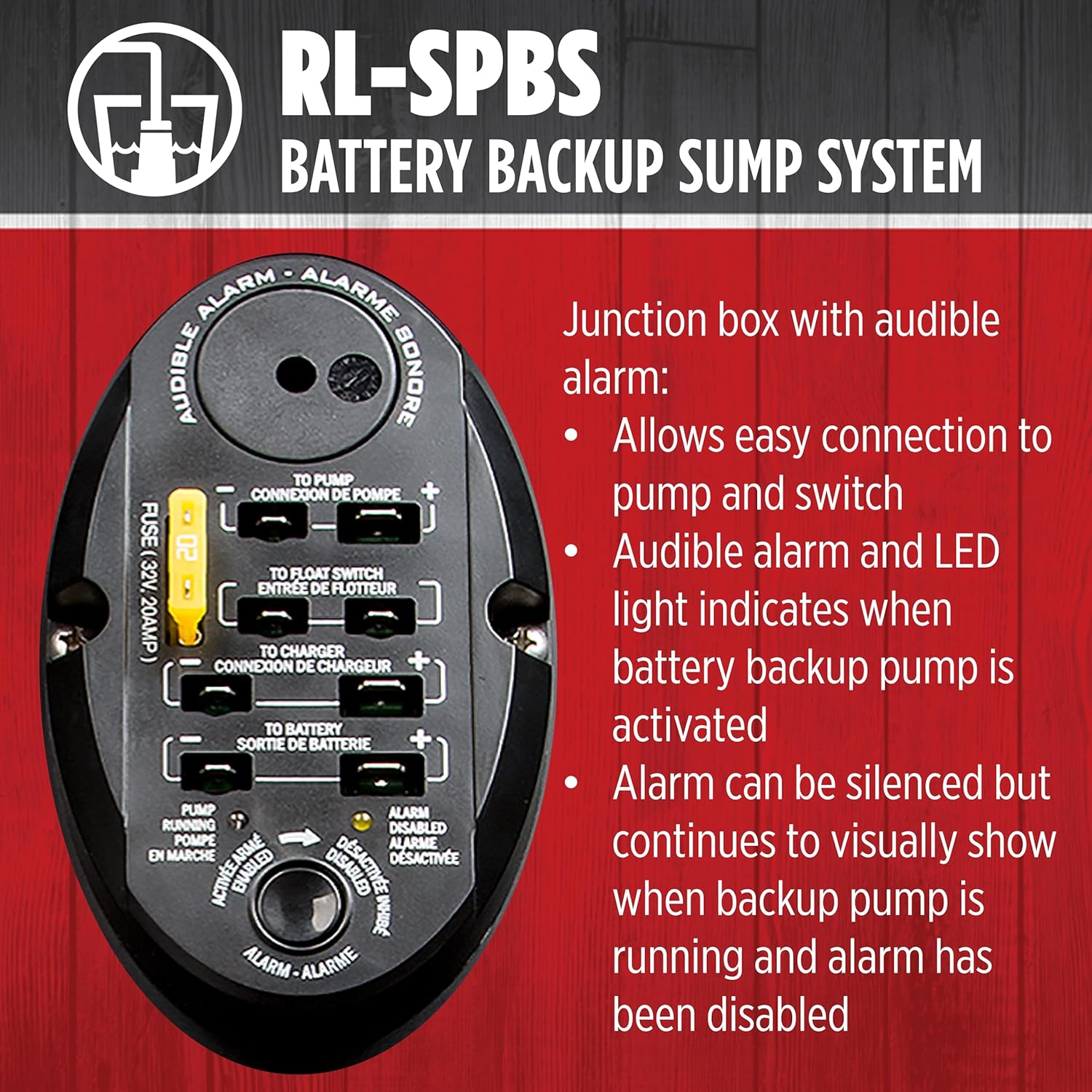

The Red Lion RL-SPBS battery back-up sump system provides emergency protection from water damage due to primary sump pump failure or power outages. The enhanced system boasts a maintenance-free, reliable diaphragm switch which comes on when the water level rises to 13.5" and shuts off when the water falls to 9" (if installed at approximately 10" from the bottom of the sump.) The pump has a 19' shut-off and can deliver water as follows: 3240 gph at 0' lift 2655 gph at 5' lift 1755 gph at 10' lift The following is included with this system: 12-volt pump with 9' lead wires, battery charger unit and junction box, battery case, 1-1/2" street elbow for 12-volt pump, flexible coupling for 12-volt pump's discharge, check valve for 12-volt pump, diaphragm switch to control 12-volt pump, red jumper wire (positive); black jumper wire (negative) and 4 cable ties. This system requires the following components NOT INCLUDED:- 12VDC deep cycle battery - BCI Group 27, rated 85 - 140 Ah, lead-acid or AGM- 115-volt primary pump (vertical switch type pumps work best as they don't require as much room as tethered float pumps such as RL-33SC, RL-50SC, RL-SC33V, RL-SC50V) - Check valve for 115-volt primary pump - 1-1/2" drain pipe from household plumbing - 1-1/2" DWV Wye discharge pipe 1-1/2" SWV street elbow H-SPG 45° - additional fittings may be required to fit existing piping Please note the pump's performance has recently been updated and this page accurately reflects the current pump's performance. The Installation Manual, labels, and carton artwork may not match the performance stated for this pump as they are in the process of being updated.

• PEACE OF MIND: to used with an existing sump pump which will operate if the power or primary pump should fail; see description for additional items needed but not included
• CHARGER SPECIFICATIONS: Input: 120VAC, 0.35 Amps, Output, 12 Volt DC/1000 mA battery charger with alarm; use with 12VDC deep cycle battery rated 85-140 Ah, lead-acid or AGM (not included); 12' cord
• PUMP SPECIFICATIONS: 12V, 14 Amps, Up to 3240 GPH at 0' lift; 19-ft. shutoff; fits basins 18" or greater, 1-1/2" FNPT discharge
• SWITCH INCLUDED: a diaphragm switch with 9' lead wires plug easily into the junction box; pump activates when water reaches 13.5"; pump shuts off when water falls to 9"

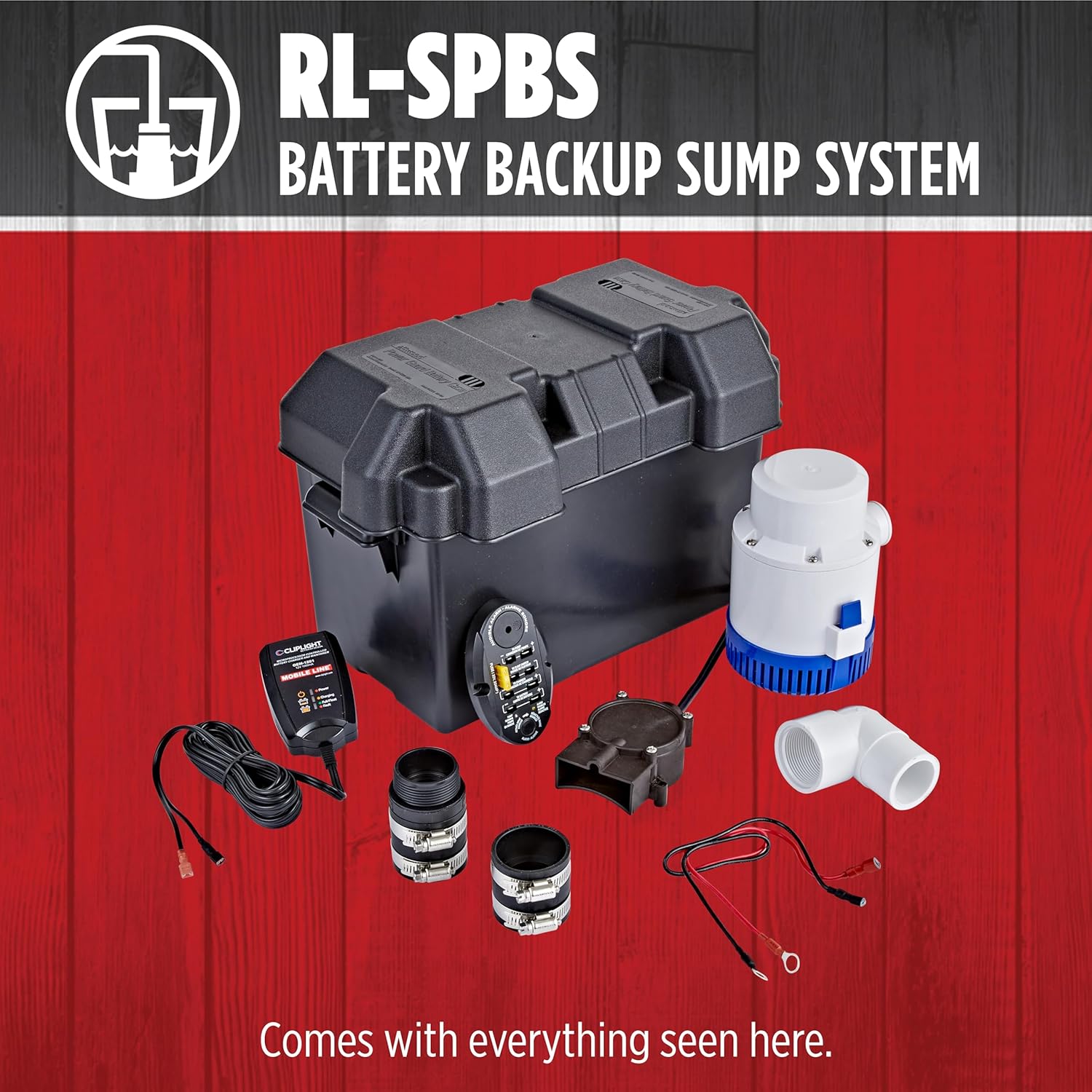

• SYSTEM INCLUDES: 12V pump, battery charger, battery case, junction box; 1-1/2" street elbow, flexible coupling, check valve, and diaphragm switch for 12V pump; red and black jumper wires, cable ties
