230mm/9.05" Telescope Rail Bar Vixen Style Dovetail Mounting Plate, with M6 1/4" 3/8" Camera Screw for Telescope Saddle Mount Base OTA Equatorial Head Tripod Adapter Sky Astrophotography
5.0 (63 items)
Limited Time SaleUntil the end
18
40
52
US$16.19 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$10.80
Product details
| Management number | 216981270 | Release Date | 2026/04/19 | List Price | US$10.80 | Model Number | 216981270 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

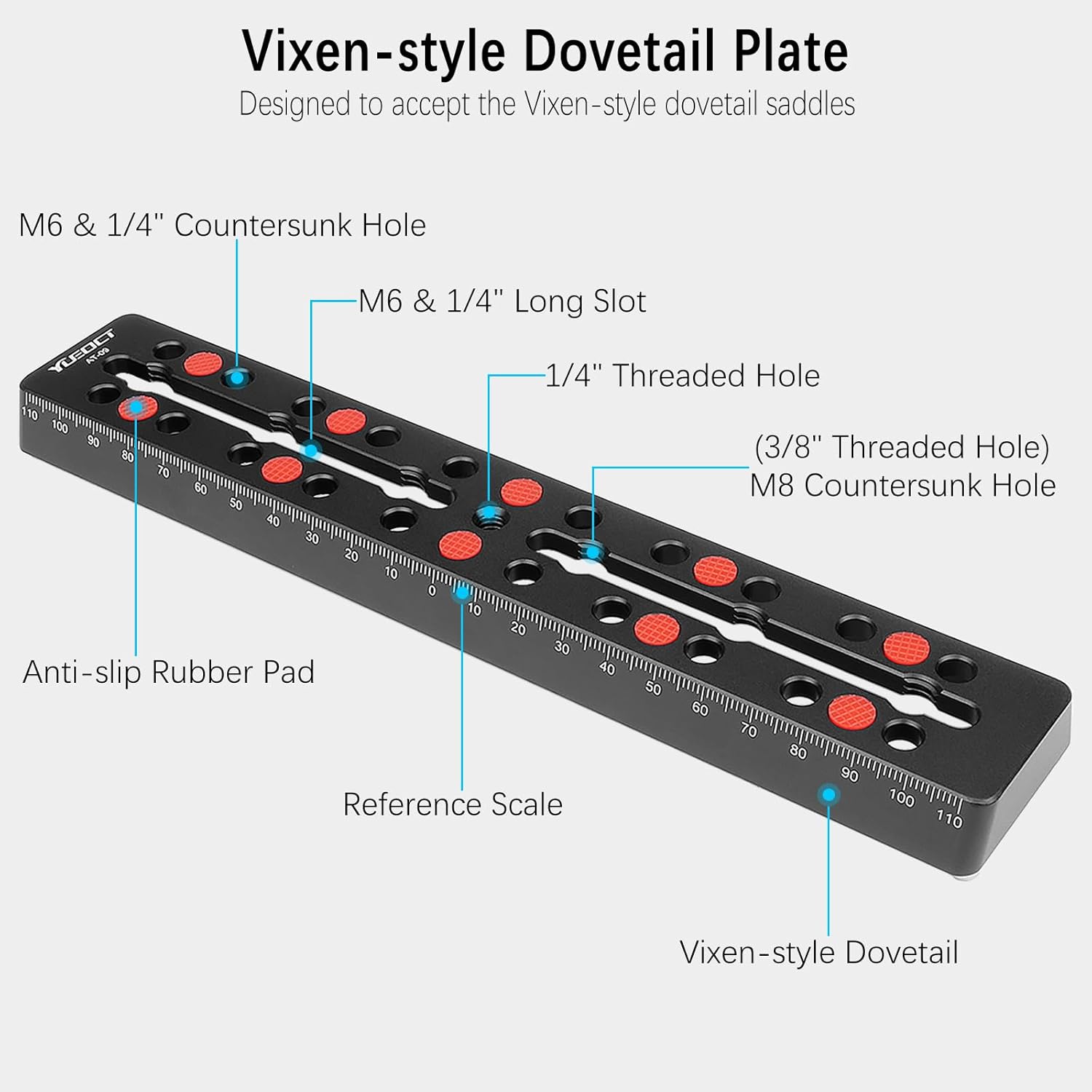

- 【Vixen-style Dovetail Plate】 Designed to accept the Vixen-style dovetail saddles.

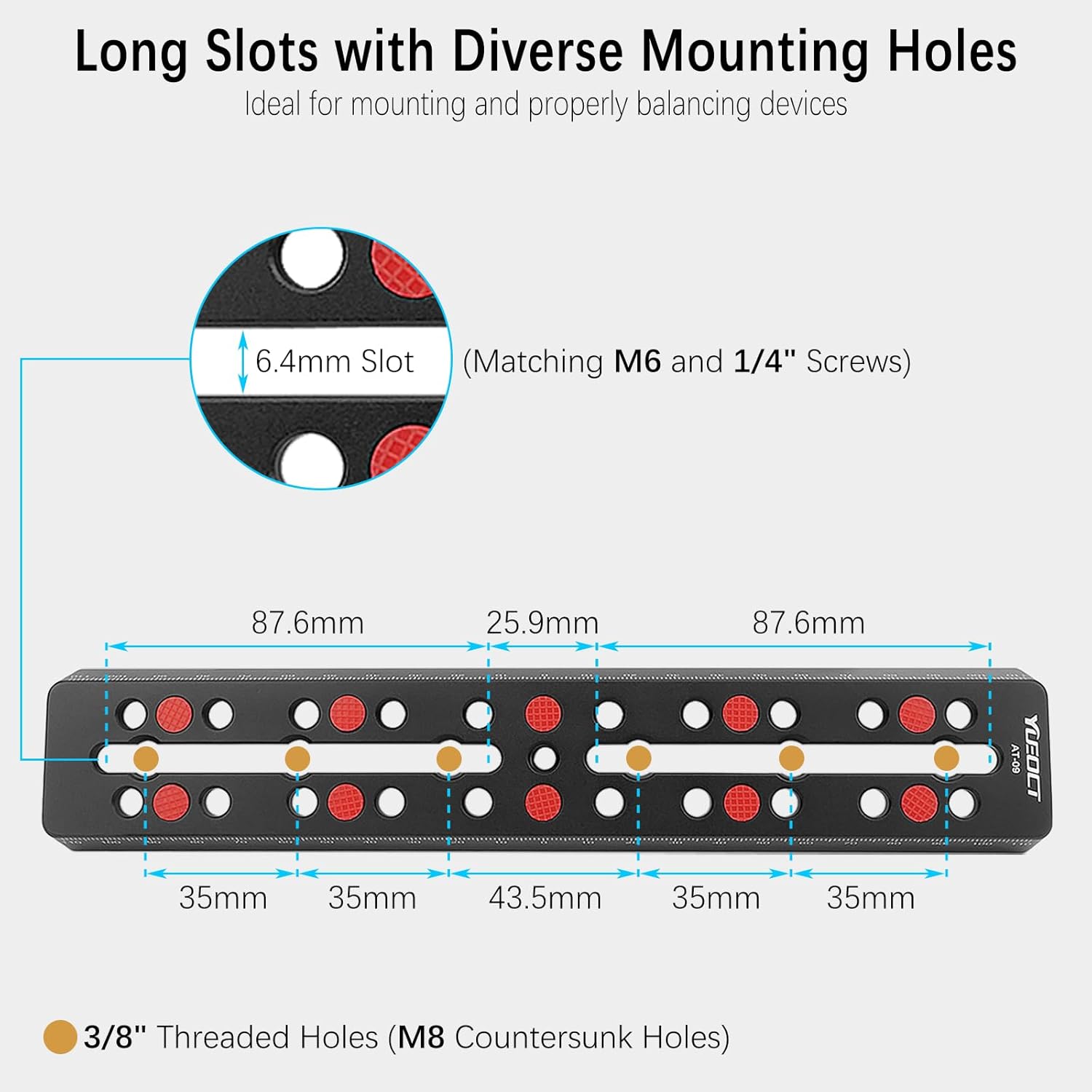

- 【Long Slots with Diverse Mounting Holes】 With two long 87.6mm (3.45") slots that is ideal for mounting and properly balancing devices. The slots are 6.4mm in width which accept M6 and 1/4" screws. In addition, there are three 3/8" threaded holes (M8 countersunk holes) with a spacing of 35mm (1.38") in each slot.
- 【M6 & 1/4" Countersunk Bores】 There are 10 pairs of 6.4mm countersunk holes with a spacing of 20mm (0.79"). The 6.4mm countersunk holes matching M6 and 1/4" screws. Ideal for accessories that with M6 or 1/4" threaded holes with a spacing of 20mm (0.79").
- 【1/4" Threaded Holes】 It reserved 1/4" threaded hole in the center for mounting on a variety of brackets that with 1/4" screw.

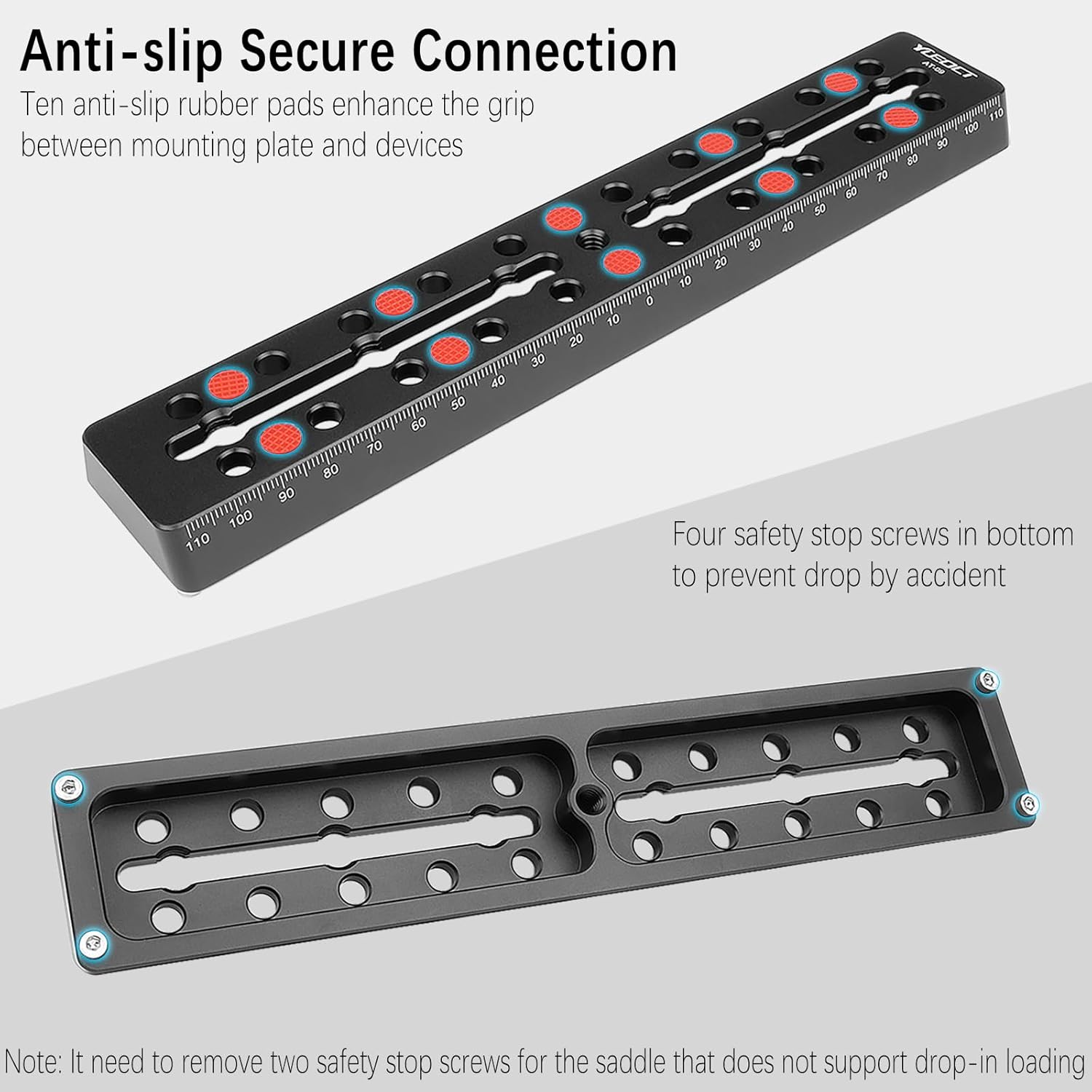

- 【Anti-slip Secure Connection】 Ten anti-slip rubber pads enhance the grip between mounting plate and devices, and protect devices from any damage due to mounting. Four safety stop screw in bottom is to prevent drop by accident. (Note: It need to remove two safety stop screws for the saddle that does not support drop-in loading)
| Brand | Yueoct |
|---|---|
| Mount | Equatorial Mount |
| Focus Type | Fixed Focus |
| Model Name | Yueoct Telescope Mounting Plate |
| Finderscope | Reflex |
| Item Weight | 230 Grams |
| Manufacturer | Yueoct |
| Model Number | AT-09 |

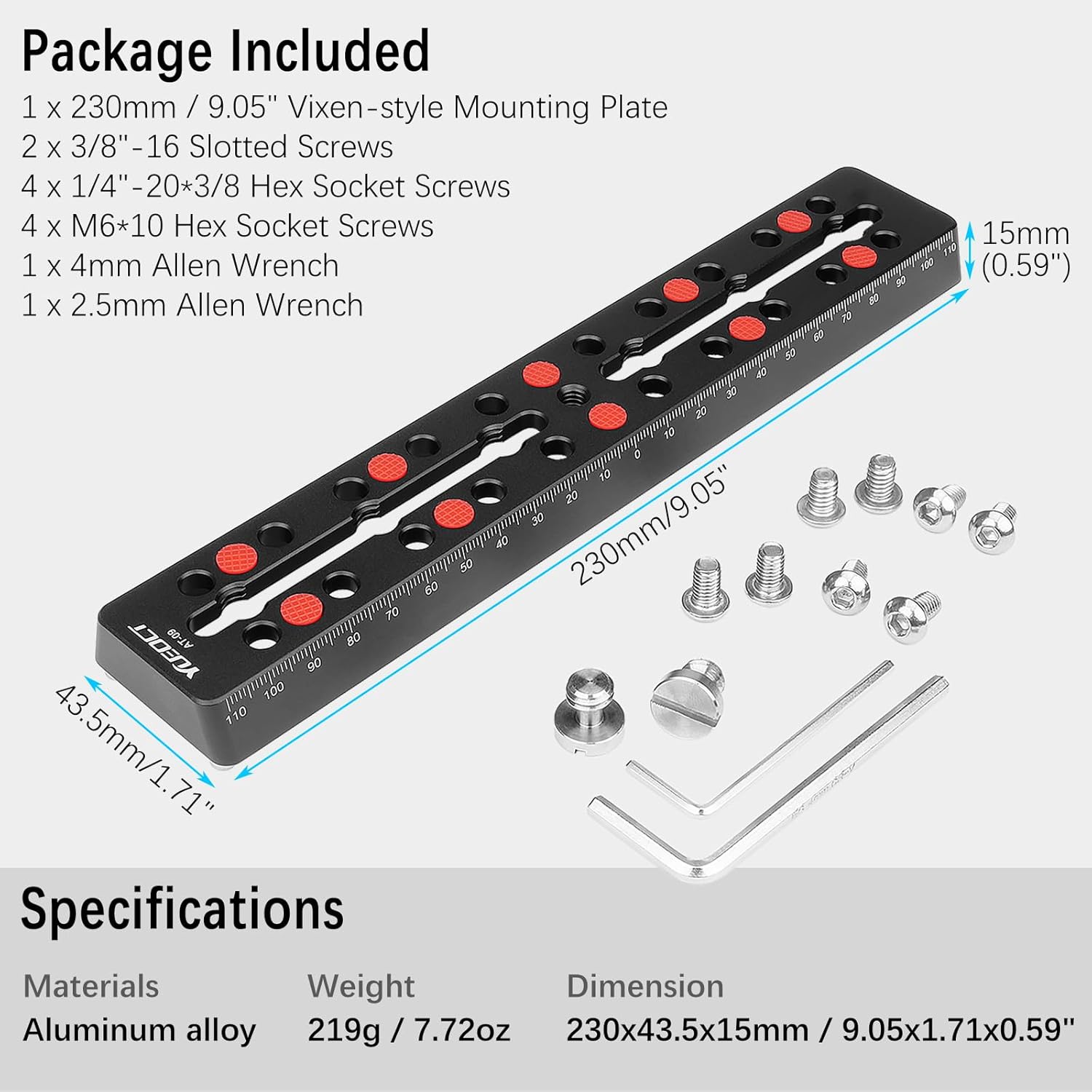

| BuiltIn Media | 1 x 230mm / 9.05" Vixen-style Mounting Plate, 1 x 4mm Allen Wrench; 1 x 2.5mm Allen Wrench, 2 x 3/8"-16 Slotted Screws, 4 x 1/4"-20*3/8 Hex Socket Screws, 4 x M6*10 Hex Socket Screws |
| Compatible Devices | Camera |
| OpticalTube Length | 230 Millimeters |
| Additional Features | Long slots with diverse mounting holes, M6 and 1/4" countersunk bores, central 1/4" threaded hole, anti-slip rubber pads |
| Warranty Description | false |
| Objective Lens Diameter | 35 Millimeters |
| Focal Length Description | 15 millimeters |
| Manufacturer Part Number | AT-09 |
| Item Dimensions D x W x H | 9.06"D x 0.59"W x 1.71"H |
| Eye Piece Lens Description | Plossl |
