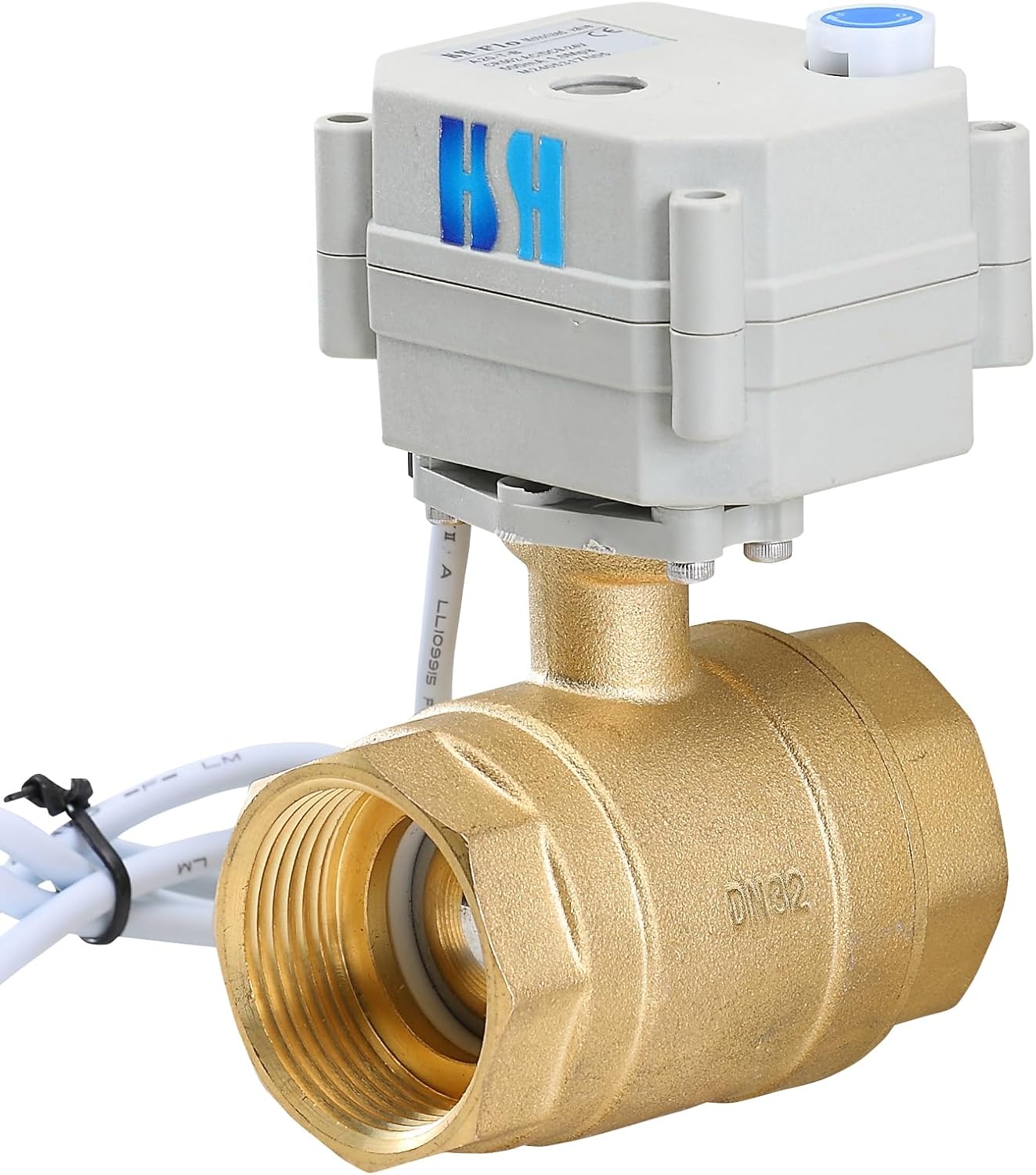

2 Way 1-1/4 inch 9-24VAC/DC Normally Closed Brass Electrical Position Feedback On/Off Motorized Ball Valve

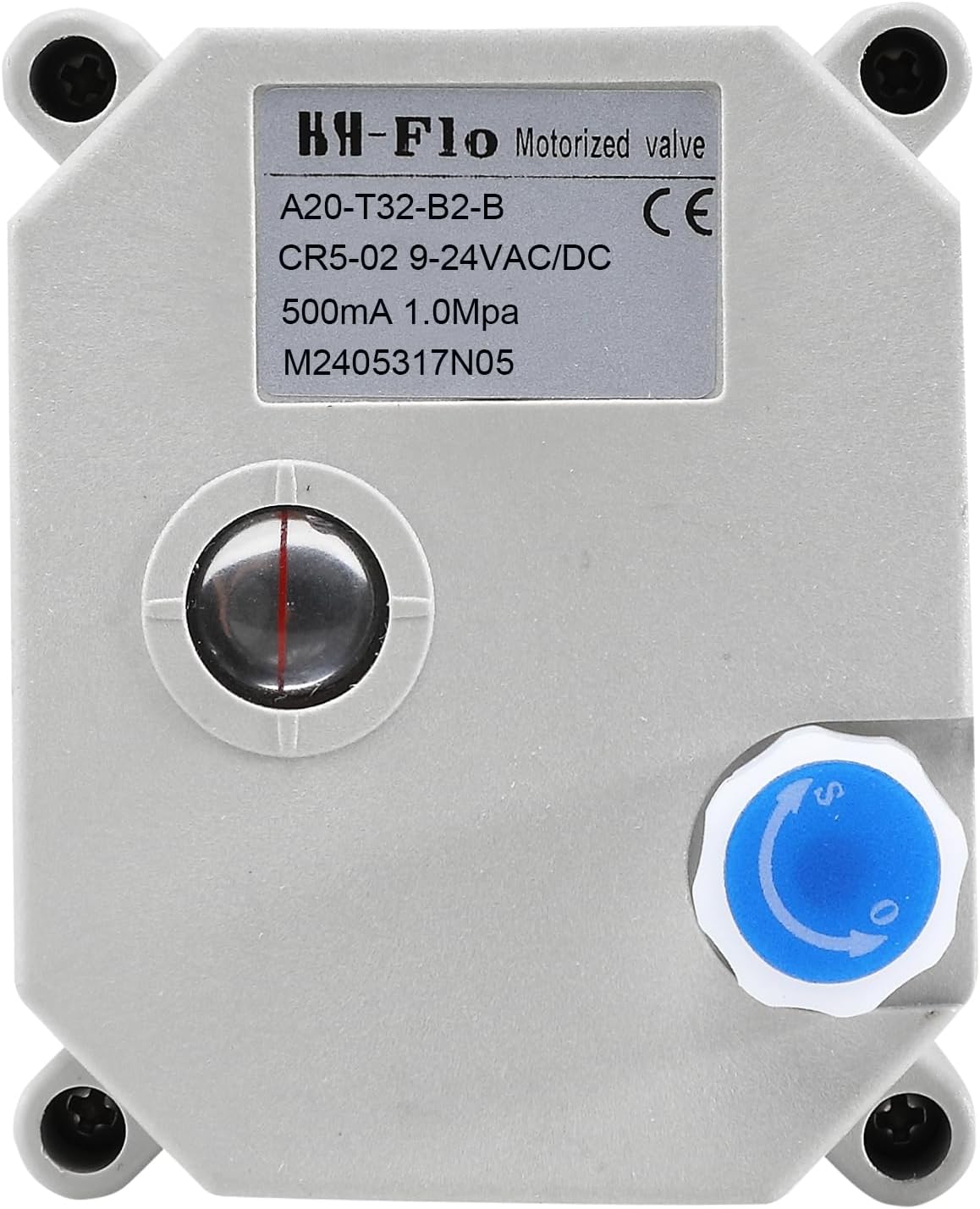

Technical Parameters:◎Valve Body Diameter: 1-1/4 inch NPT Thread, 29mm Reduce Bore;◎Valve Body Material: Brass;◎Actuator Material: Engineering Plastics;◎Sealing Material: FKM and PTFE;◎Wiring Diagram: CR502-B (Electircal Singal Position Feedback Auto Return When Power Off);◎Working Voltage: AC/DC9-24V;◎Working Current: ≤500mA;◎Working Medium: Fluid, Air;◎Working Pressure: Max 145 Psi;◎Switching Time: ≤5s;◎Life Time: 70000 times (Testing pressure is 0.4MPa, medium is water)◎Actuator Rotation Angle: 90°;◎Torque Force: 3N.m.;◎Cable Length: 0.5m;◎Environment Temperature: -15℃ ~ 50℃;◎Liquide Temperature: 2℃ ~ 90℃;◎Switch Indicator: YES◎Manual Override: YES;◎Protection Class: IP67Application:◎HVAC;◎Water Treatment;◎Chemical Process;◎Air Compressor Drainage;◎Automatic Control System;◎Solar Hot Water Engineering;◎Watering Flowers, Regular Humidification;◎Air Conditioning Automatically Humidifies;◎Automatic Control Of Small Industrial Equipment;◎Environmental Protection, Efficient Water-saving;◎Replace Solenoid Valve (Especially when solenoid valve cannot work reliably);Manual Override Instructions:◎In case of anelectric supply failure, it is possible to operate the actuator manually.◎Power must in off position when start the manual override.◎Gently putt up the knob about 3mm, then revolve the knob around left and right to control the valve open or close.◎When the red needle in the indicator pointing to "S", means the valve is closed; When pointing to "O", means the valve is open.◎After finish the manual override operation, must press down the knob, so that for the normal electric operation.

• ◎High-Performance 1-1/4" NPT Brass Valve Body With 29mm Reduce Bore, This Robust Brass Valve Body Featuring A Reduce Bore Of 29mm And 1-1/4 inch NPT Threading, Is Engineered For Optimal Fluid Control. Its Versatile 2-Way Design Facilitates Efficient Bi-Directional Flow, Offering Unparalleled Flexibility And Performance.
• ◎Versatile Voltage Compatibility: Operates Across 9-24VAC/DC Experience Seamless Operation Across A Wide Voltage Range, From 12VDC 24VAC/DC to 36VDC. This Broad Compatibility Ensures Reliable Performance In Various Electrical Setups, Making It Ideal For Industrial Applications Requiring Adaptable Power Sources.
• ◎Enhanced Safety With Integrated Limit Switches: Automatically Cuts Off Current Equipped With Advanced Limit Switches, This Valve Provides Automated Current Cutoff Upon Reaching The Desired Position, Enhancing Precision And Preventing Potential Damage. Enjoy Peace Of Mind With Enhanced Safety Features.

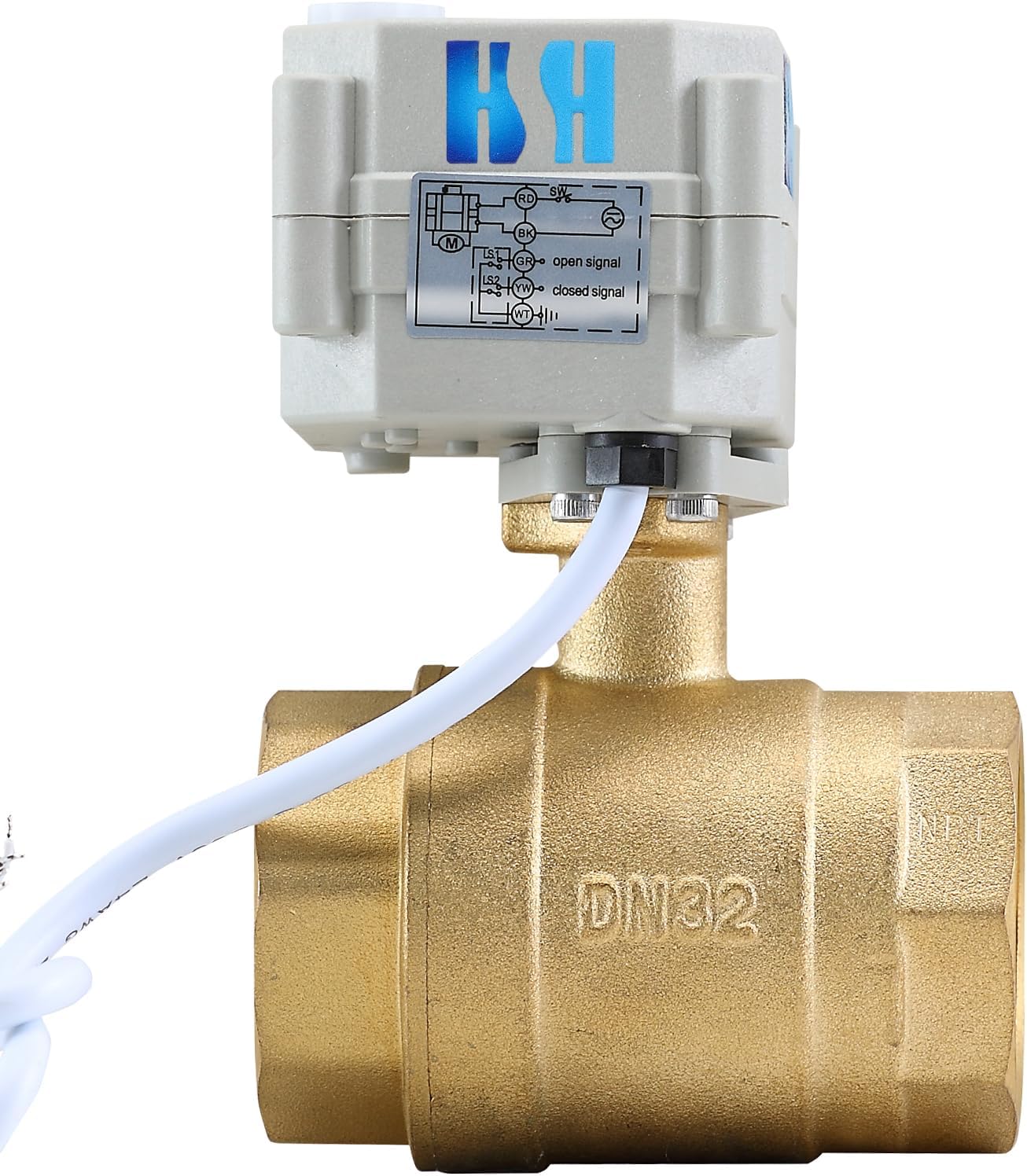

• ◎Efficient Two-Wire Control And Position Feedback System Benefit From Efficient Two-Wire Control And A Normally Closed Design, Ensuring System Stability Even In Power Loss Scenarios. Integrated Position Feedback Wires Offer Real-Time Monitoring And Adjustment For Optimized Performance.
• ◎Fail-Safe Operation With Built-In Capacitor: Ensures Automatic Return To Original Position Experience Uninterrupted Operation With The Built-In Capacitor, Which Ensures Fail-Safe Return To The Original Position During Power Failures. This Intelligent Design Prioritizes System Reliability And User Convenience.
