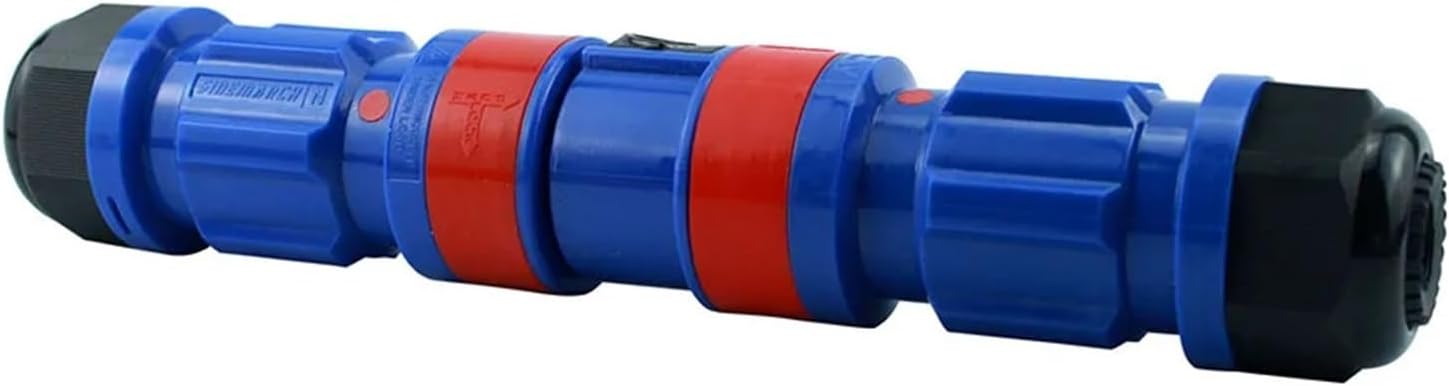

10PCS 400 Amp Male Female Set Power Connector Silver Plated Brass Contact for Stage Power Distro

Electrical Connector10PCS 400 Amp Male Female Set Power Connector Silver Plated Brass Contact for Stage Power Distro1. Comes with two rubber sleeves (I.D. 18mm and 26mm) to fit different size of cables2. The housing has 5 different colors and phases to prevent mating errors, different color and phase cannot be mated3. Contacts fitted with a plastic end cap to prevent accidental touching of live parts4. IP 2X finger protection against electric shock5. M40 waterproof cable gland comes with two rubber sleeves (I.D. 18mm and 26mm) to fit cables from dia19mm to dia28mm6. The standard package includes R120 silver plated brass reduction sleeve: (I.D.) 16.5mm x (length) 32mm, suitable for dia120MM² cables. Other size can be according to customer requirements.Please note that do not reuse locating pin. Reusing Locating pin might expose the operation to electrical danger.Specifications:- Current Rating: 400A continuous with 120mmsq cable- Withstanding Voltage: 1000V- Test Voltage: 4500V (Max.)- Short Circuit Rating: Up to 35.5KA- Insulation Resistance: >5000M Ohms at 500 Vac<;0.1m Ohms- IP Rating While Mated: IP 67- Contact Material: Silver plated brass- Housing Material: High impact thermoplastic- Locating Pin Material: POM- Working Temperature: -45-85- Contact Type: Set screw- Set Screw on Brass Contact: 10.5N/meter (Min.)- Mating Cycle: >500- Flammability: UL94-V0- certificationModel no.TypePhaseColorCable size(Diameter)Waterproof cable gland sizeSMLS-400-1BN-120-MRLine (male )LINE1brown120mm²M40/19-28mmSMLS-400-2BK-120-MRLine (male )LINE2black120mm²M40/19-28mmSMLS-400-3GY-120-MRLine (male )LINE3grey120mm²M40/19-28mmSMLS-400-NBL-120-MRLine (male )NEUTRALblue120mm²M40/19-28mmSMLS-400-EGN-120-MRLine (male )GROUNDgreen120mm²M40/19-28mmSMLD-400-1BN-120-MRLine drain (female )LINE1brown120mm²M40/19-28mmSMLD-400-2BK-120-MRLine drain (female )LINE2black120mm²M40/19-28mmSMLD-400-3GY-120-MRLine drain (female )LINE3grey120mm²M40/19-28mmSMLD-400-NBL-120-MRLine drain (female )NEUTRALblue120mm²M40/19-28mmSMLD-400-EGN-120-MRLine drain (female )GROUNDgreen120mm²M40/19-28mmPackage Content:1 x brown 400A male 1 x black400A male 1 x grey400A male 1 x blue400A male 1 x green400A male 1 x brown 400A female 1 x black400A female 1 x grey400A female 1 x blue400A female 1 x green400A female ==========High-concerned chemical : NoneModel Number : SMLSLD-400-10SDIY Supplies : ElectricalOutput Voltage : 400ACurrent Rating : 400A continuous with 120mmsq cableWithstanding Voltage : 1000VTest Voltage : 4500V Max.Short Circuit Rating : Up to 35.5KAContact Material : Silver plated brassHousing Material : High impact thermoplasticLocating Pin Material : POMWorking Temperature : -45-85Contact Type : Set screw

• 1. Invented patent key releasing button delivers great safety and convenience without additional tool while un-mating
• 2. The contact is made of brass with silver plated for superior conductivity
• 3. The connector housing is made of shock proof and high temperature resistance thermoplastic
• 4. POM locating pin for excellent insulation
• 5. Ergonomic plastic grip offers comfort and easier handling
